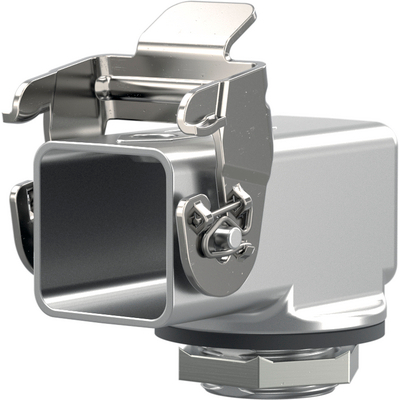

EPIC® ULTRA H-A 3 EGS

The robust and reliable built in housing as EMC version

EPIC® 직사각형 커넥터 하우징 EMC 보호, 내부식성, UL50E, Nema250

  • EMC 보호
  • 내부식성
  • Made in Germany

Lapp의 보완 자동화 요소식음료기계 및 플랜트 엔지니어링철도풍력 에너지옥외용에 적합화학적 저항성 우수내부식성공간 요구 사항간섭 신호방수

CE

품번 Article descriptionMPackaging unit
10423640
EPIC ULTRA H-A 3 EGS M202010

장점

  • The EPIC® ULTRA H-A 3 range comprises the smallest EMC housings in the heavy-duty industrial connector sector and ensures safe plug connections in a small amount of space.
  • The built-in housing is mateable by many commercially available hood housings.
  • The arrow as a new design element on the surface of the housing is easy to feel and simplifies plugging in spatially confined and possibly poorly visible application areas.
  • With straight cable entry for orderly cable routing and to prevent excessive bending of the cable.
  • Simple mounting on the enclosure by screwing in and fixing with locknut.

응용 범위

  • To protect the connector insert from environmental influences.
  • Especially for environments where the product is getting into contact with water, cleaning agents and saline substances.
  • Especially for environments where electromagnetic compatibility (EMC) is required.
  • For use with many EPIC® rectangular connector inserts.
  • Withstands high environmental and mechanical stresses.

제품 특성

  • Screw mounted housing M20, angled, with one cable entry
  • IEC 68-2-52, 엄격 레벨 2에 의하여 주기적인 염수 분무에 대한 저항성 시험
  • DIN EN ISO 9227에 따른 염수 분무 테스트, 방법 NSS, 테스트 기간 480시간
  • DIN EN 6988에 의거한 부식-저항
  • 인서트용 스테인레스 스틸 나사를 포함한 배송

분류 ETIM 5

  • ETIM 5.0 Class-ID: EC000437
  • ETIM 5.0 class 설명: 산업용 커넥터 하우징

분류 ETIM 6

  • ETIM 6.0 Class-ID: EC000437
  • ETIM 6.0 Class-Description: Housing for industrial connectors

재료

  • 하우징: 니켈 도금 아연 다이캐스팅
    레버: 스테인레스 스틸
    씰링: NBR

보호 평가

  • IP 66 / IP 68 1 meter / 10 hours (locked)
  • NEMA 250, UL50E: 12, 4, 4X (latched)

VDE-시험됨

  • UL: in preparation
  • VDE: in preparation

온도 범위

  • -40°C to +100°C, short-term up to +125°C

  • 사진은 각각의 제품 상세 이미지를 대변하지는 않습니다.
