KOREAEPIC® H-A 3 AG

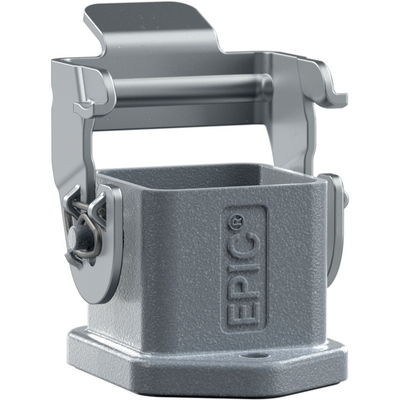

혁신적인 금속 그리고 플라스틱 하우징 디자인
Locks reliably, does not burn, and protects the internal insert from dust and moisture: these are just three of the essential features of our newly revamped rectangular connector housing. The lightweight polyamide panel-mount base is also halogen-free, UV-resistant and securely sealed to the device or machine thanks to the NBR material.

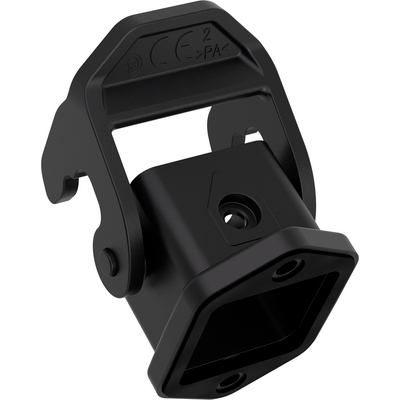

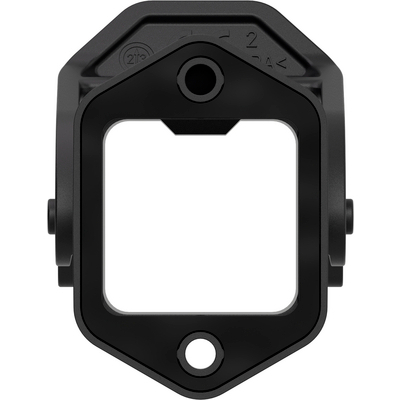

The panel-mount base of the EPIC® H-A 3 series is now available with a new design, with a marking arrow and an integrated seal. The single lever is no longer made of metal, but plastic.
| 품번 | Article description | M | 재료 | 색상 | 피스 / PU | |
|---|---|---|---|---|---|---|
| H-A 하우징 : 패널-장착 기반 (직선) | ||||||
10422500
| H-A 3 MAG | AG | 아연 다이-캐스팅 | 회색 | 10 | |
10422000
| H-A 3 AG gr | AG | 서모플라스틱 | 회색 | 10 | |
10422200
| H-A 3 AG bk | AG | 서모플라스틱 | 흑색 | 10 | |
장점
- The EPIC® H-A 3 series comprises the smallest housings in the heavy-duty industrial connector range and ensures secure connections in the smallest of spaces.
- The panel mount housing is mateable to many commercially available grommet housings.
- With open base for cable entry into the housing or control cabinet.
- The arrow as a new design element on the surface of the housing is easy to feel and simplifies plugging in spatially confined and possibly poorly visible application areas.
- The locking takes place using a plastic single lever.
응용 범위
- To protect the connector insert from environmental influences.
- For use with many EPIC® rectangular connector inserts.
- For connecting devices and machines to the power supply.
- Suitable for outdoor use.
제품 특성
- H-A case: Wall base
- 1 레버
- 플랫 가스켓 포함
분류 ETIM 5
- ETIM 5.0 Class-ID: EC000437
- ETIM 5.0 class 설명: 산업용 커넥터 하우징
분류 ETIM 6
- ETIM 6.0 Class-ID: EC000437
- ETIM 6.0 Class-Description: Housing for industrial connectors
재료
- 하우징: 파우더-코트된 아연 다이-케스팅, 회색
레버: 아연-도금 강철
씰링: NBR - 하우징: 회색 열가소성 수지, 흑색
레버: 아연-도금 강철
씰링: NBR
보호 평가
- IP 65 (latched)
- NEMA 250, UL50E: 12, 4 (latched)
VDE-시험됨
- 인증된 생산 제어: VDE-REG. 번호: B437
- UL-테스트 완료:
UL 파일 번호: E75770
온도 범위
- -40°C to +100°C, short-term up to +125°C
- 사진은 각각의 제품 상세 이미지를 대변하지는 않습니다.
