EPIC® H-Q 4+2
This compact rectangular connector insert ensures that there is a powerful drive every time. The 4+2-pin variant is suitable for the power supply and signal transmission of servo drives, for example, and can be (semi-)automatically assembled with a cable thanks to crimp connection technology.
4 전원 접촉 + 2 신호 접촉
장점
- High power up to 40 A despite extremely space-saving design for very small devices.
- Crimp connection creates a vibration-proof connection, ensures maximum contacting reliability between contact and cable and is suitable for automated assembly.
- Mateable with market standard connectors.
응용 범위
- For connecting devices and machines to a power supply in various applications, including signal transmission.
- Typical areas of application are electric motors and servo drives.

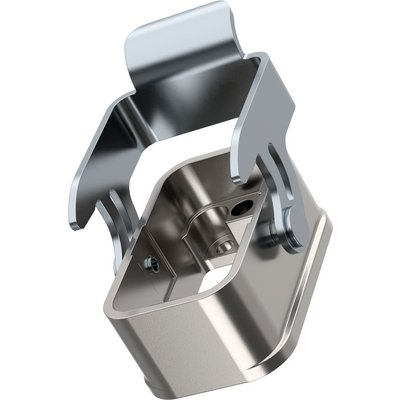

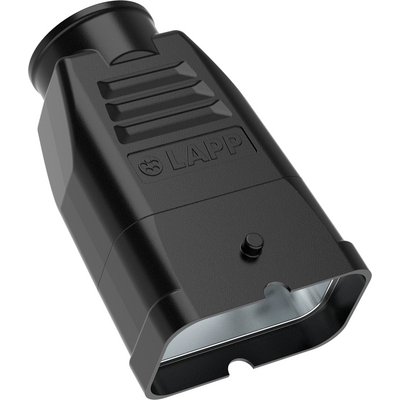

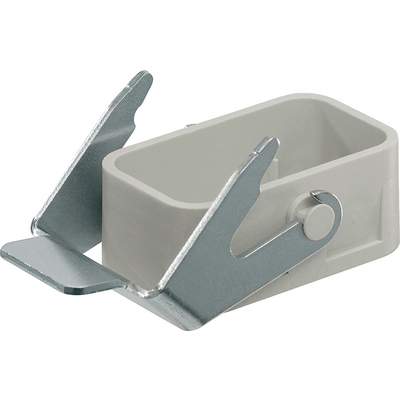

- For use with housings of the EPIC® H-Q series.
분류 ETIM 5
- ETIM 5.0 Class-ID: EC000438
분류 ETIM 6
- ETIM 6.0 Class-ID: EC000438
- ETIM 6.0 Class-Description: Contact insert for industrial connectors
정격 전압 (V)
- IEC: 400/690 V (H-Q 핀)
UL: 600 V (H-Q 핀)
CSA: 600 V (H-Q 핀)
정격 펄스 전압
- 6KV (H-Q 4 mm contacts)
4KV (H-D 1.6 mm contacts)
정격 전류 (A)
- IEC: 40 A (H-Q 4 mm contacts)
10 A (H-D 1.6 mm contacts)
오염도
- 3
접촉 저항
- < 4 mOhm
핀
- 구리 합금, 은 도금
접촉 번호/수치
- 4 + 2 + PE
체결 방법
- 클림프 체결: 1.5 - 6.0 mm² (H-Q 4 mm 핀)
0.14 - 2.5 mm² (H-Q 1.6 mm 핀)
기계적작업 사이클
- 500
온도 범위
- -40°C에서 +125°C
- 사진은 각각의 제품 상세 이미지를 대변하지는 않습니다.
