EPIC® H-D 1.6 machined contacts

EPIC® 사각 커넥터의 삽입과 모듈 용도

Machined EPIC H-D contacts are suitable for industrial data and signal transmission. Silver or gold plating guarantee reliable contacting.

  • High quality contacts for data and signal transmission with 1.6mm
  • Choice of silver or gold plating

CSARU

품번 Article descriptionContact type도체 단면적 (mm²)도체단면적 비율표면스트리핑 길이 (mm)Packaging unit
13162000
절삭된 H-D 1.6메일0.14 - 0.371Ag8.0100
13163000
절삭된 H-D 1.6피메일0.14 - 0.371Ag8.0100
13162100
절삭된 H-D 1.6메일0.52Ag8.0100
13163100
절삭된 H-D 1.6피메일0.52Ag8.0100
13162200
절삭된 H-D 1.6메일0.75 - 13Ag8.0100
13163200
절삭된 H-D 1.6피메일0.75 - 13Ag8.0100
13162300
절삭된 H-D 1.6메일1.54Ag8.0100
13163300
절삭된 H-D 1.6피메일1.54Ag8.0100
13162400
절삭된 H-D 1.6메일2.55Ag5.8100
13163400
절삭된 H-D 1.6피메일2.55Ag5.8100
13162500
절삭된 H-D 1.6메일0.14 - 0.371Au8.0100
13163500
절삭된 H-D 1.6피메일0.14 - 0.371Au8.0100
13162600
절삭된 H-D 1.6메일0.52Au8.0100
13163600
절삭된 H-D 1.6피메일0.52Au8.0100
13162700
절삭된 H-D 1.6메일0.75 - 13Au8.0100
13163700
절삭된 H-D 1.6피메일0.75 - 13Au8.0100
13162800
절삭된 H-D 1.6메일1.54Au8.0100
13163800
절삭된 H-D 1.6피메일1.54Au8.0100
13162900
절삭된 H-D 1.6메일2.55Au5.8100
13163900
절삭된 H-D 1.6피메일2.55Au5.8100

제품 특성

  • High quality contacts for data and signal transmission with 1.6mm
  • Choice of silver or gold plating
  • Connection cross sections from 0.14mm² to 2.5mm² available for combined data and power transmission

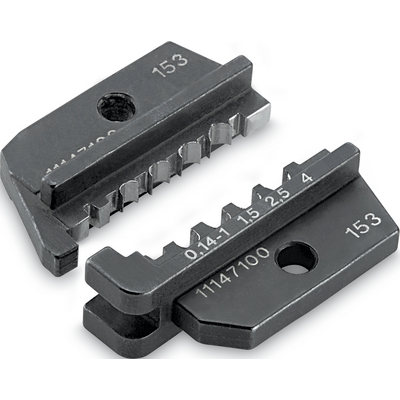

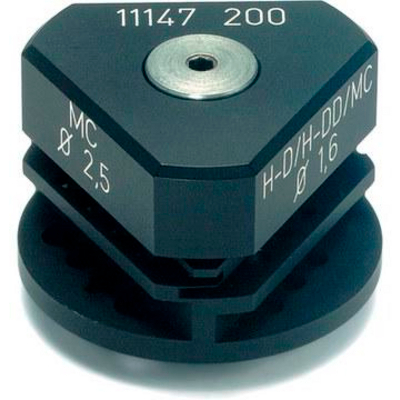

  • With the appropriate tools, good contacting is created quickly and easily

분류 ETIM 5

  • ETIM 5.0 Class-ID: EC000796
  • ETIM 5.0 class 설명: 산업용 커넥터 컨택트

분류 ETIM 6

  • ETIM 6.0 Class-ID: EC000796
  • ETIM 6.0 Class-Description: Contact for industrial connectors
