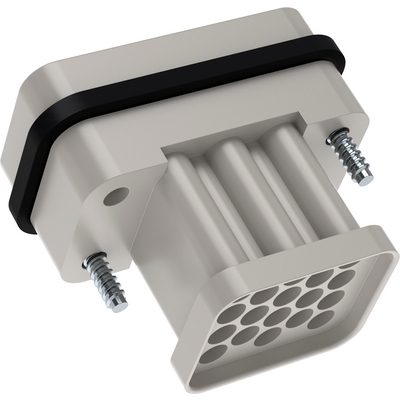

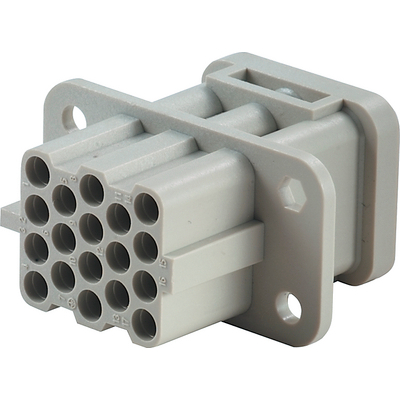

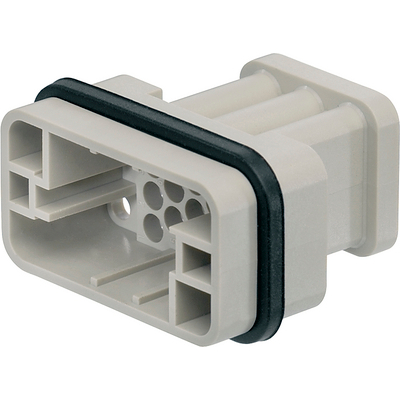

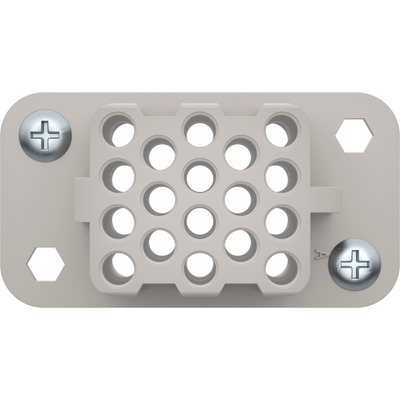

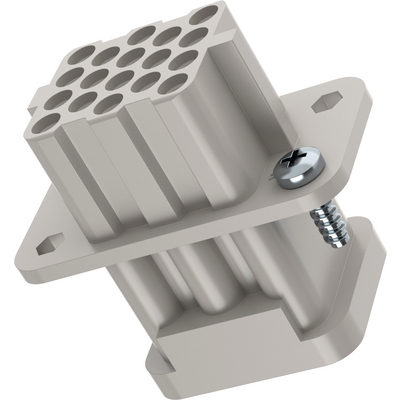

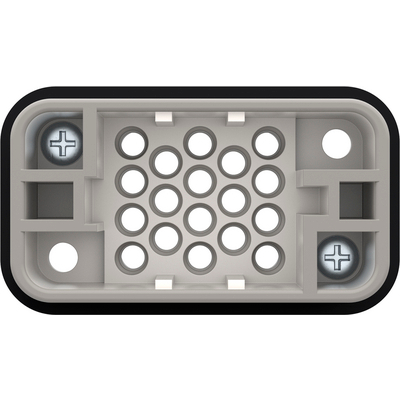

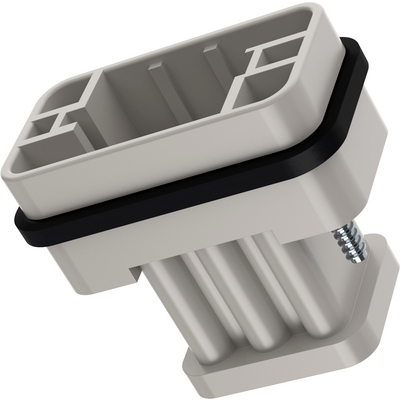

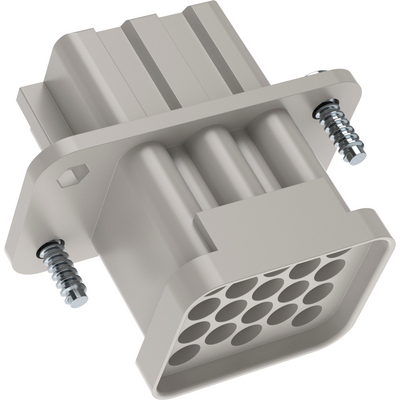

KOREAEPIC® H-Q 17
This compact rectangular connector insert ensures that there is a powerful drive every time. The 17-pin variant is suitable for supplying power to servo drives, for example, and can be (semi-)automatically assembled with a cable thanks to crimp termination technology.
장점
- High power up to 10 A despite extremely space-saving design for very small devices.
- Crimp connection creates a vibration-proof connection, ensures maximum contacting reliability between contact and cable and is suitable for automated assembly.
- Mateable with market standard connectors.
응용 범위
- For power supply connection of devices and machines in various applications.
- Typical areas of application are electric motors and servo drives.
- For use with housings of the EPIC® H-Q series.
분류 ETIM 5
- ETIM 5.0 Class-ID: EC000438
분류 ETIM 6
- ETIM 6.0 Class-ID: EC000438
- ETIM 6.0 Class-Description: Contact insert for industrial connectors
정격 전압 (V)
- IEC: 250 V
UL: 600 V
CSA: 600 V
정격 펄스 전압
- 4 kV
정격 전류 (A)
- 최대. 10 A
오염도
- 2
접촉 저항
- < 2 mOhm
핀
- 구리 합금, 은/금 도금
접촉 번호/수치
- 17 + PE
체결 방법
- 압착 종단: 0.14 - 2.5 mm²
기계적작업 사이클
- 500
온도 범위
- -40°C에서 +125°C
- 사진은 각각의 제품 상세 이미지를 대변하지는 않습니다.
